Netfloor USA ZoneTeq
Netfloor ZoneTeq
  • Plug-and-Play Power
  • Many Options for Layout
  • UL Certified
  • More Streamlined than Traditional Wiring
  • Integrates with Access Floors


ZoneTeq Modular Power System

Netfloor USA ZoneTeq Features

  • Simple Plug-and-play connections
  • UL Certified
  • Includes Service Interface Junction Box
  • Includes Zone Boxes for organizing cable runs
  • Floor Boxes can be located as close to the user as possible
  • Accepts Any Floor Covering
  • Easy to Install or Reconfigure


Netfloor USA ZoneTeq Modular Power System allows you to quickly and safely run power to any location in your facility with a low-profile access floor. ZoneTeq is plug-and-play, with robust, UL-Certified clips that allow you to extend the length of the run, connect to junction boxes, and ultimately connect to floor boxes to provide service to your users, kiosks or machinery.


Cable Management Access Floor (Netfloor USA ECO)


ZoneTeq Modular Power System

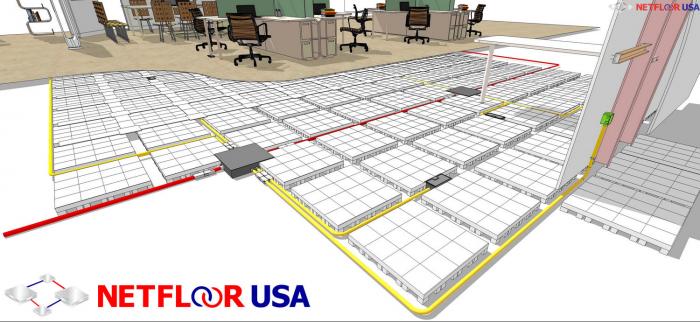

Netfloor USA ZoneTeq is a modular power system, specifically designed for access flooring. ZoneTeq is truly a "plug-and-play" system; the power cables, whips, junction boxes and floor boxes literally "clip" and "snap" together. While ZoneTeq is designed and built by Netfloor USA and fits precisely in our access floor systems, it is compatible with other raised access floors as well. And since the entire ZoneTeq system is UL Rated, you can be sure it is safe and simple to install.

Want to see just how strong the floor panels are? Check out this post!

While a cable management access floor makes routing cables and rearranging spaces fast and efficient, if you're still running wires the old fashioned way, you're not taking full advantage of what Netfloor USA has to offer. What is better than a low-profile access floor that makes it easy to access wires and cables? A modular power system that is actually plug-and-play!

No more pulling wires and cables one at a time. With ZoneTeq, you get multiple electrical circuits per whip. The only "hard wired" connections are the main ZoneTeq junction box that connects to the building power supply (usually a panelboard.)


Cable Management Access Flooring + Real Cable Management

A low profile access floor is a great alternative to a traditional raised access floor when underfloor air distribution is not needed. With a height range from 1.5"-2.36" (40mm-60mm), Netfloor USA ECO preserves precious floor to ceiling height, while providing an organized and flexible cable management system. Netfloor USA ECO is well-suited for applications such as: office spaces, call centers, command/control centers, retail stores, museums, libraries, IT Labs and more.

The flooring system is flexible enough to be built around obstructions such as columns, corners and curves. It is strong enough to have walls, partitions and consoles built directly on it. The flooring system readily accepts a variety of floor coverings such as: carpet, VCT and more. The Netfloor USA ECO access floor offers simple and fast installation, and is easily reconfigured when room layout and cabling needs change.

The Netfloor USA ECO Brochure is available here.

Watch A Time Lapse Video of Netfloor USA ECO Being Installed.

We explain the entire installation process and tell you exactly what each piece of the system is for:






Cable Management Access Flooring is a great way to future-proof your facility, whether it's an office, command center, library, university or any type of building. Read why the architectural experts at HOK place to much emphasis on future-proofing the buildings they design.

Netfloor USA ECO System Components

Constructed of high strength polypropylene, the dark gray UNIPANEL forms the basis for the cable management floor. Despite its light weight (5 lbs.), the 40mm UNIPANEL has a Design Load Rating of 1,300 lbs. Each UNIPANEL has 64 mini pedestals on the underside, which distributes the load from the floor above more evenly than if supported at only the four corners. The dark dray UNIPANELS are made from a majority of recycled content and are fully recyclable. The panels are constructed with a modular matrix which provides high strength while remaining light and easy to handle. The panels are easy to customize by cutting out sections to fit around obstructions like columns, posts, walls and more, while retaining high structural integrity.

Flank Caps form the basis for the integrated cable trenches as well as help lock the UNIPANELS into position. Flank caps are easily removed to run additional wires and cables without affecting the integrity or alignment of the floor. Made from high strength steel with a matte black finish.

A Central Cap is placed at the intersection of cable trenches, on a 2'x2' grid. Central caps help lock the UNIPANELS into position, but also serve as a junction point for the cable trenches. Made from high strength steel with a matte black finish.

Base Connectors help lock the UNIPANELS into place and keep the floor square. A small margin of 1/16" is built into the Base Connectors to facilitate lining up and squaring the floor when the first panels are laid. Once several panels are laid down and checked for alignment, the UNIPANELS and Base Connectors lock into place and are immobile. Made from high strength plastic.

A closed cell foam sheet underlayment is the first item to be laid down. It provides a thin layer on which the entire Cable Management Floor system is installed. This underlayment helps dampen any noise from loads and movement on the floor above, as well as provides insulation between your concrete slab and the floor system.

End Caps are part of the cable trench system, and are used to finish off the end of a cable trench row when it meets a wall or partition. Made from high strength steel with a matte black finish.

A specialized flank cap, for the cable trenches, that has an opening for wire access. Almost always paired with a Grommet.A specialized flank cap, for the cable trenches, that has an opening for wire access. Almost always paired with a Grommet.

Made from ABS plastic, these simple and effective grommets are matched to the flank caps, allowing you to pull cables and wires from the cable trench at any location. Easily installed and rearranged if needed.

This fine-crafted aluminum edge trim piece is sold in 78" lengths and is used to neatly finish the edge of the cable management floor. Often used on the sides of ramps, it can be used along any edge, if desired. Included features are built in slots to secure your floor finish (carpet, tile, etc.) and a high visibility, glow in the dark safety strip to ensure occupant safety along the ramps.

Edge Rail is used to finish the edges of the Cable Management Access Floor if a full-width panel is not used, or if there is any space between the edge of the last panel and the wall. Available in several widths (80mm, 150mm, 200mm).

Ramp sections in a 4" or 24" width can be joined together to form a ramp of any width. Standard ramp slope is 1:12. Other slopes are available. *Please contact us for further information on optional slopes.*

Trimmers are used to provide a smooth, uniform finish along the entire edge of the access floor. If medium or wide base molding is to be used in the room along the edges of the floor, these trimmer pieces may not be necessary. Dark gray color to closely match the UNIPANELS.

This support brace is used at any edge of the access floor where a precise cut was made to the UNIPANEL without leaving any mini pedestals at the edge of the panel. The support is installed under the edge of the UNIPANEL to ensure a strong uniform support structure all the way to the wall. The edge support is not always necessary; please contact us with your room dimensions and layout for further information.
